PoE Transmission over 500 Meters
One of the common challenges when deploying PoE is its restriction on distance. While fiber optic cables provide significant coverage for data transmission, local power is still required. This is where the long-range PoE switch comes into play – a game-changer that enables the transmission of both power and data over 500 meters via a single Cat5 cable. It allows you to effortlessly connect and power various devices like IP cameras, access points, and sensors located even hundreds of meters away without compromising on network performance.

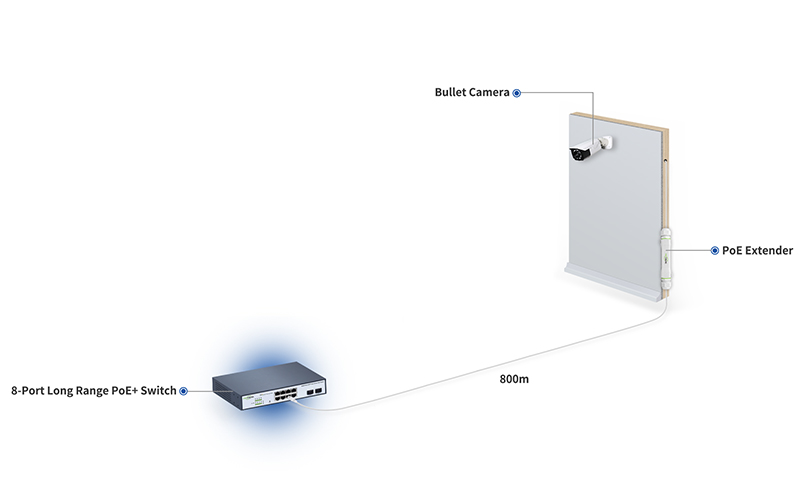

Support PoE transmission up to 500m (1600ft) at 100Mps on ports #1-4 when used with a PoE extender.
Extend PoE over 250m (656ft) at 10Mbps on ports #5-8 without the need for additional PoE extenders.

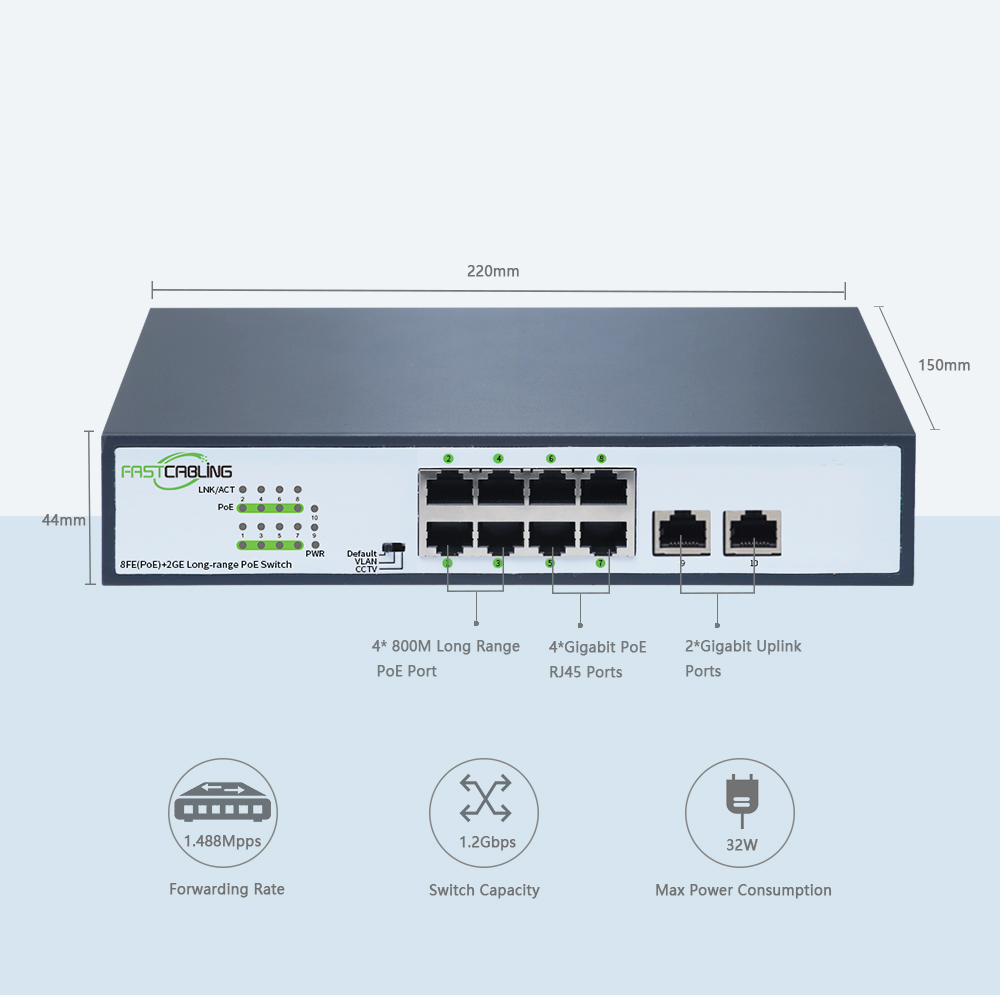

Offer high-speed network connectivity via 8×100Mbps RJ45 ports with a switching capacity of 5.6Gbps.
Ensure high-speed connectivity and non-blocking data forwarding throughout the network.
Support up to 8×PoE or PoE+ devices with a total power budget of 120W (30W max. per port).
Plug-and-play setup, no configuration required; no need to install additional power outlets; wall mountable.
Product Specification
Datasheet 6320-24 8-Port Long Range PoE+ SwitchInstallation Instruction

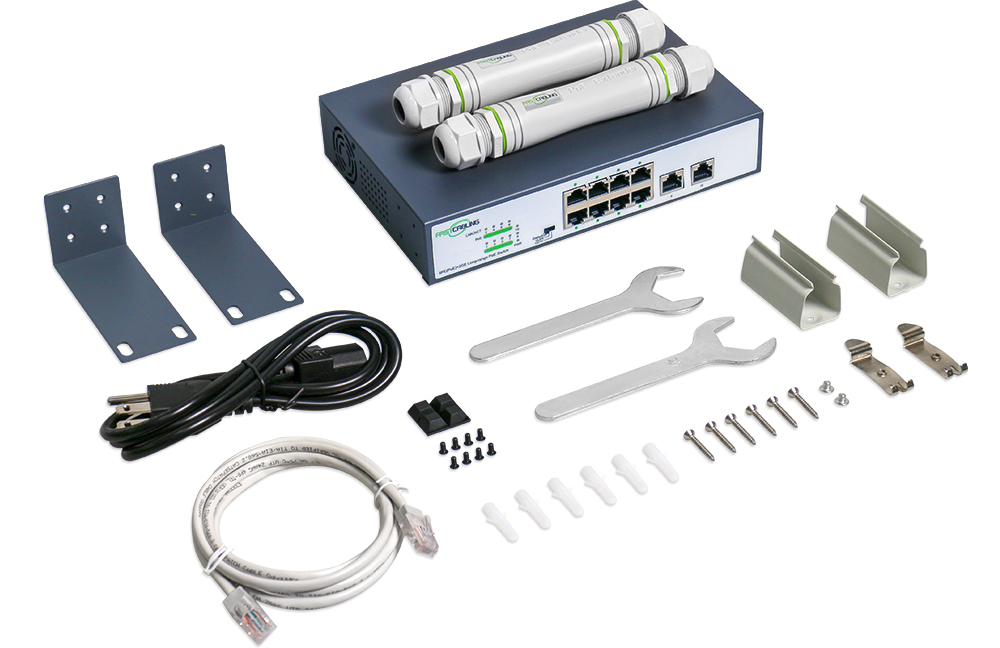

Quick Guide 6320-24 8-Port Long Range PoE+ SwitchIn the box
